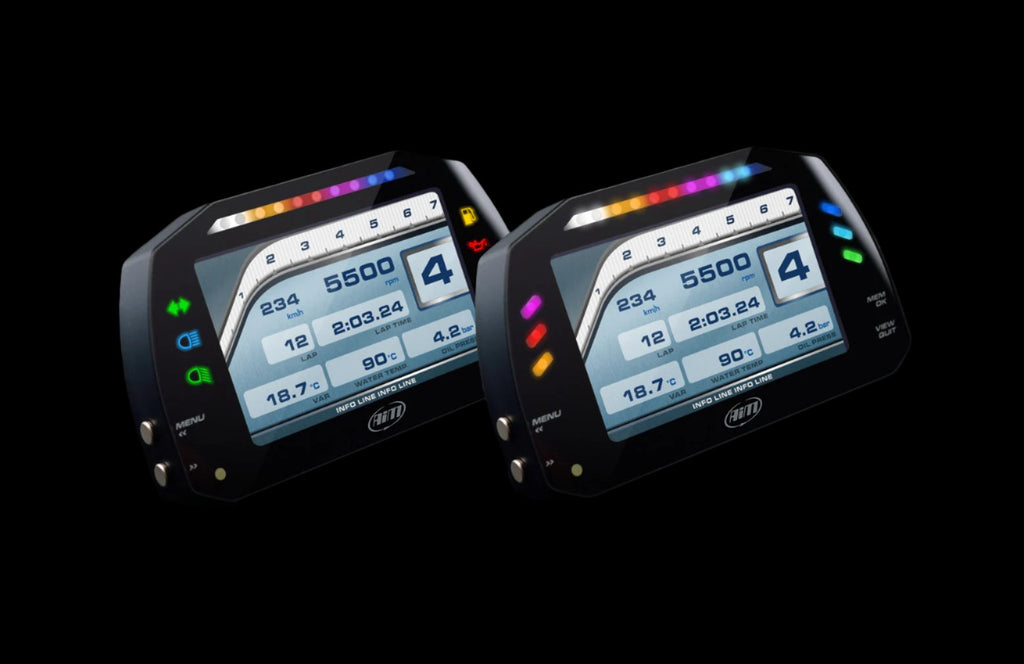

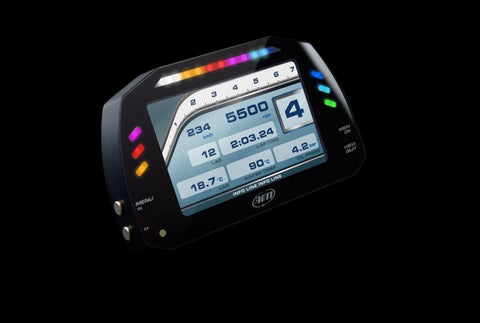

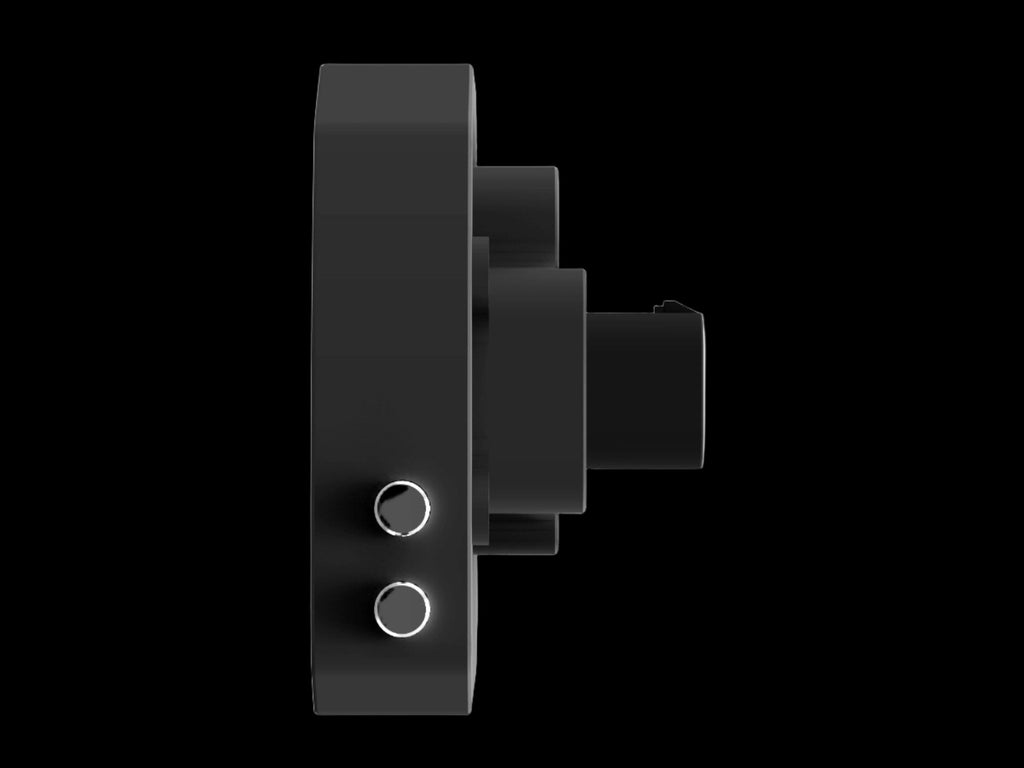

MXS 1.3 Strada belongs to the MX Family, a complete range of TFT Dash & Loggers designed for Motorsport from AiM
A WIDE RANGE OF DATA SOURCES
A WIDE RANGE OF DATA SOURCES
AiM dashes and dash loggers are designed to acquire and display data coming from your ECU, as well as from the GPS09c included in the kit (dash loggers version only), analog/digital inputs and predefined math channels. Performance and data acquired can also be increased adding up to eight expansion modules.
CAN, K-LINE AND RS232 ECU CONNECTION
MX Series manages CAN, K-Line and RS232 ECU communication lines and its huge database includes
more than 1,500 ECU protocols.
TRACKS
With more than 4,000 tracks in database, GPS09c (included in the logger versions) recognizes the track you are racing on and automatically starts sampling lap times.
Thanks to Track Manager function of RaceStudio 3, tracks can be created, deleted and modified, transmitted and received to/from MX Series.
LAP TIME MANAGER
MX systems calculate lap times and record data, track name and time of the test making your life easier when you analyze your data.
MX systems calculate lap times and record data, track name and time of the test making your life easier when you analyze your data.
In case the track is not in the database, no problem: MX dash loggers automatically understand the characteristics of the track and give the lap time anyway.
EXPANSIONS
MX Series can be connected to a lot of AiM expansions like GPS09c, Channel Expansion, TC Hub and LCU-One CAN to get the best from your engine and - with AiM SmartyCam 3 family - to see your track performances on your PC with all the values you need in overlay.
Furthermore the Strada Logger trasform the Strada and Strada Light device in a complete MX dash logger, giving the chance to record your session.
REAR CAMERA
You may connect up to two additional optional rear cameras to the dedicated input in order to show a reverse mirror image directly on the logger display.
CUSTOM DASHBOARD
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data
to be shown, their end of scale and measure units.
You can show the data via bargraph, ringbar, icons
and much more.
FLEXIBLE ALARMS, SHIFT LIGHT ARRAY & ICONS MANAGER
Configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or a flashing one and the flashing frequency; choose to have an accompanying text message and set the alarm priorities.
You can customize the RGB shift light patterns as you like and select the icons you need among a wide list on RaceStudio 3.
Technical sheet
Digital outputs
Standard harness

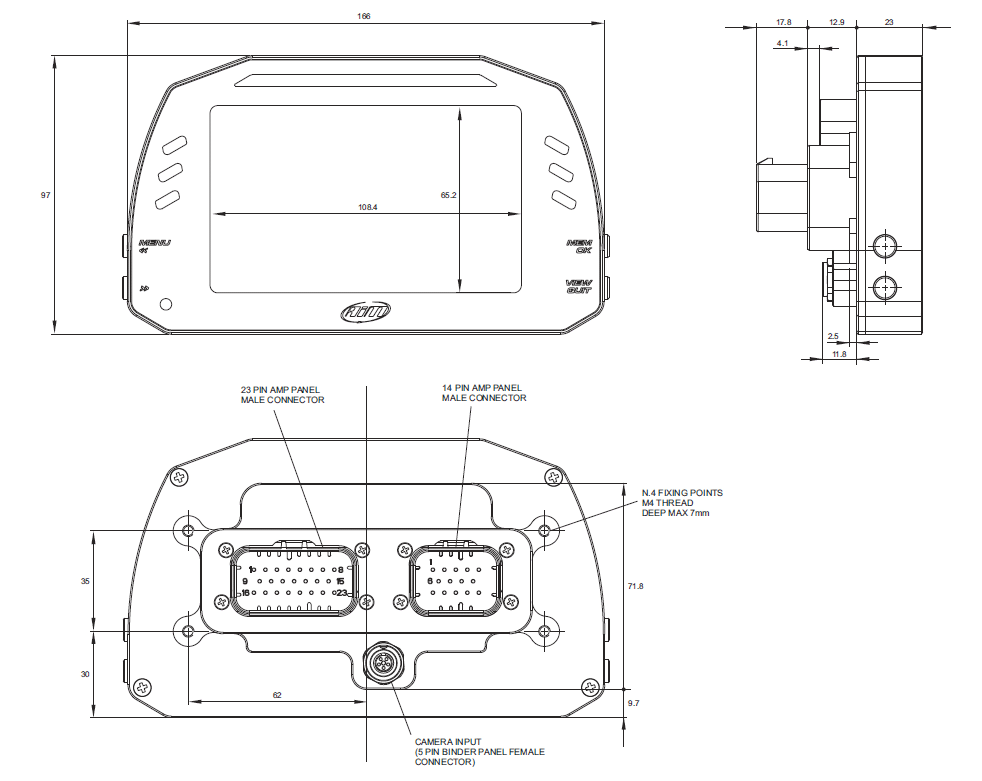

Installation template (scaled 1:1)
Rear camera technical sheet
Digital outputs

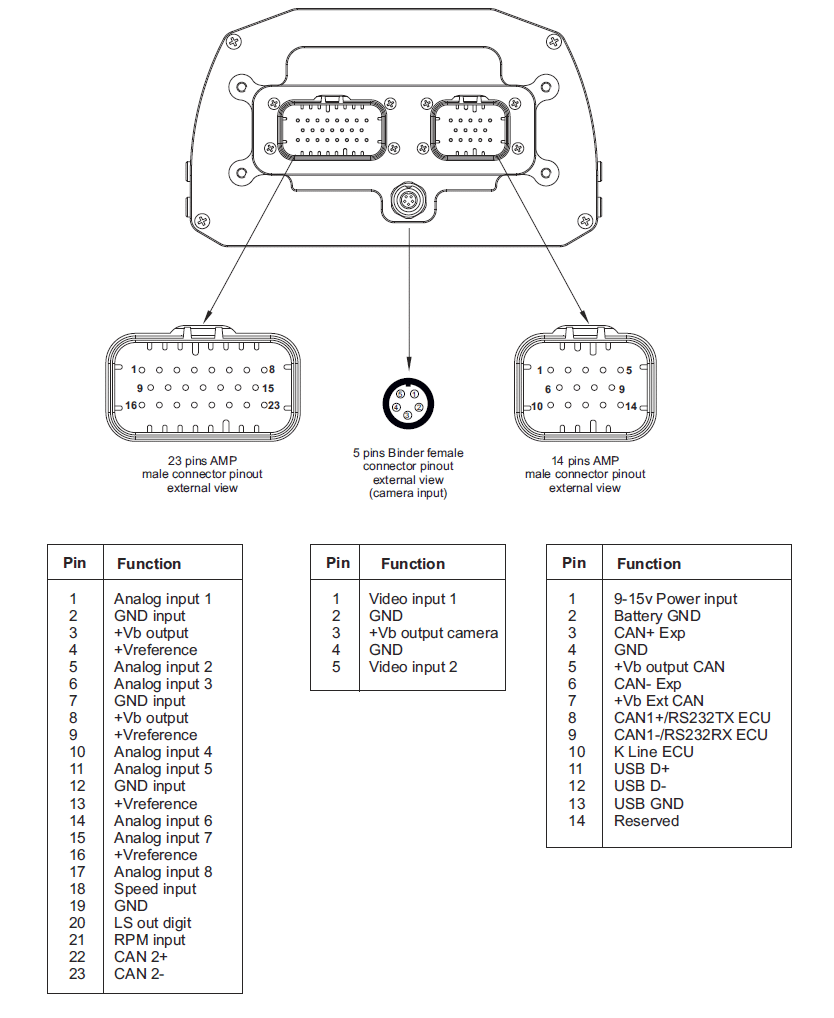

Standard harness
Installation template (scaled 1:1)
Rear camera technical sheet
| Display |
5” TFT
|
| Resolution |
800x480 pixels
|
| Contrast |
600:1
|
| Brightness |
700cd/m2 - 1,100 Lumen
|
| Ambient light sensor |
Yes
|
| Alarm LEDs |
6 RGB freely configurable
|
| Shift lights |
10 integrated freely configurable RGB LEDs
|
| CAN connections |
3
|
| ECU connections |
CAN, RS232 or K-Line
|
| ECU compatibility |
+ 2,000 industry leading ECUs
|
| Expansion CAN connection |
GPS Module, Channel Expansion, TC Hub, Lambda Controller,
SmartyCam 3 Series |
| Analog/digital inputs |
8 fully configurable, max 500 Hz each
|
| Digital inputs |
1 speed input, coil RPM input
|
| Digital outputs |
1 (1 A max)
|
| Second CAN |
Yes
|
| Body |
Anodized Aluminum
|
| Pushbuttons |
Metallic
|
| Connectors |
2 AMP connectors + 1 Binder connector
|
| Power consumption |
400 mA
|
| Dimensions |
169.4x97x23 mm
|
| Weight |
480 g
|
| Waterproof |
IP67
|
AVAILABLE KITS
All kits include: MXS 1.3 Strada, USB cable, 14 pins CAN harness or OBD CAN+K.
MXS 1.3 Strada + UBS cable + 14 pins CAN harness (ECU) XA3MXSST12A010
MXS 1.3 Strada + UBS cable + 14 pins OBD harness CAN+K (ECU) XA3MXSST12A020

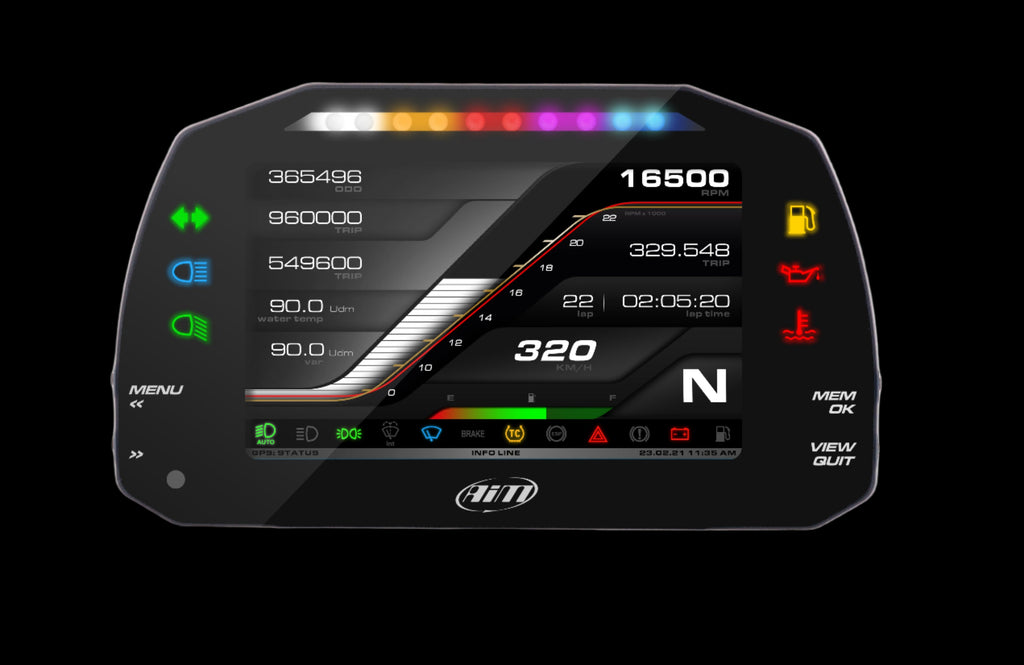

MXS 1.3 Strada Street icons version + UBS cable + 14 pins CAN harness (ECU) XA3MXSST12I010
MXS 1.3 Strada + UBS cable + 14 pins OBD harness CAN+K (ECU) XA3MXSST12A020
MXS 1.3 Strada Street icons version + UBS cable + 14 pins CAN harness (ECU) XA3MXSST12I010
MXS 1.3 Strada Street icons version + UBS cable + 14 pins OBD harness CAN+K (ECU) XA3MXSST12I020
